Description

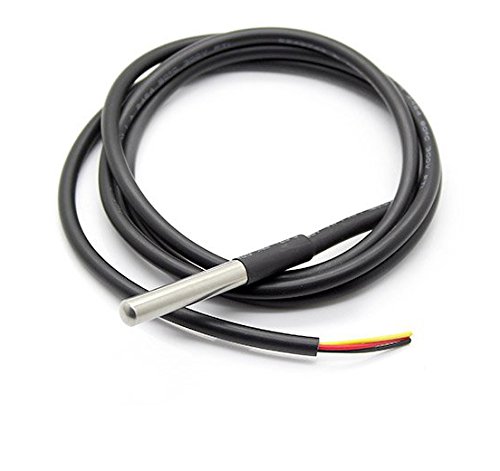

Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Waterproof DS18B20 Digital Temperature Sensor Probe 100cm Wire Cable for Arduino Because they are digital, you don’t get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0 V systems.
Features of DS18B20
- Stainless steel encapsulated waterproof temperature sensor DS18B20 temperature
- sensor 18B20
- Original DS18B20 temperature sensor probe used chips
- Encapsulated waterproof high quality stainless steel tube anti-rust
- Stainless steel housing (6x50mm), leader length 100cm
- After each probe to undergo a rigorous testing packaged individually
- 3.0V~5.5V power supply
- 9~12-adjustable resolution
- Temperature range : -55 ° c ~+125 ° c
- No external components, and unique single-bus interface
- Output lead wire : Red (VCC), white (DATA), black (GND)
